Specification
| Basic Information | ||
| Supported CPU | Onboard Intel Processor N100 Supports Intel Turbo Boost Technology 2.0 |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch (17cm x 17cm) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Audio Shielding – Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | 1 x PCIe 3.0 x1 slot | |
| Memory | ||
| Type | DDR4 | |
| Slots | 1 x SO-DIMM | |
| Supported Memory | 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* * We recommend that you use 16GB or less memory module. |
|
| Maximum Memory | Max. 16GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort** 1 x VGA port 1 x HDMITM port*** **Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMITM 2.1. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port (s) | 1 x DisplayPort | |
| VGA (s) | 1 x VGA port | |

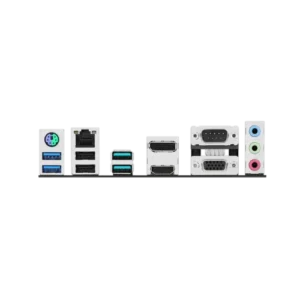

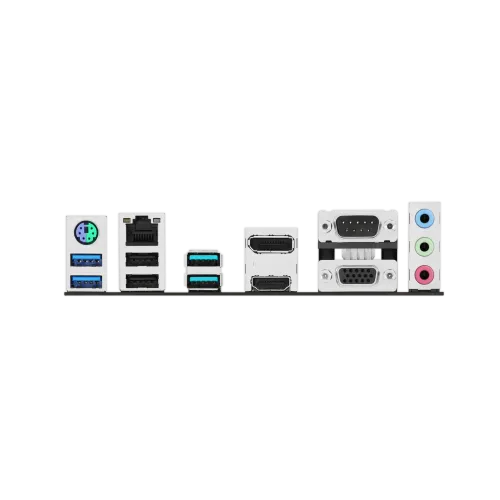

| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)* 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports* 1 x USB 2.0 header supports 2 additional USB 2.0 ports * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth. |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
|
| Supported Storage | Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port 1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode) 1 x SATA 6Gb/s port |
|
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Internal I/O Connectors Fan and cooling related 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 1 x SATA 6Gb/s port USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x Chassis Intrude header 1 x LPT header 1 x S/PDIF out header 1 x SPI TPM header (14-1pin) 1 x Speaker Header 1 x System Panel connector |
|
| Others | ||
| Special Features | Proven Quality – ESD Guards – LANGuard – Overvoltage Protection – Stainless-Steel Back I/O ASUS Q-Design – Q-LED Core ASUS Thermal Solution – CPU heatsink design |
|
| Bundled Software | ASUS Exclusive Software ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years warranty | |

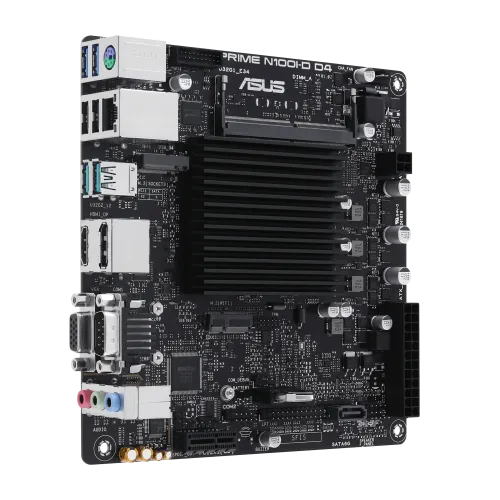

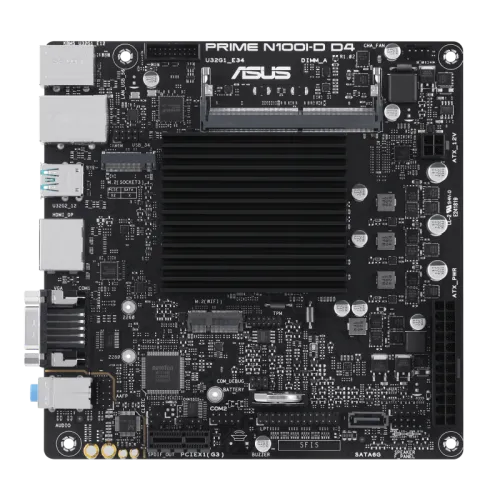

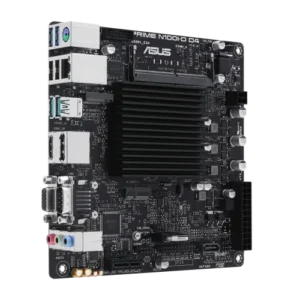

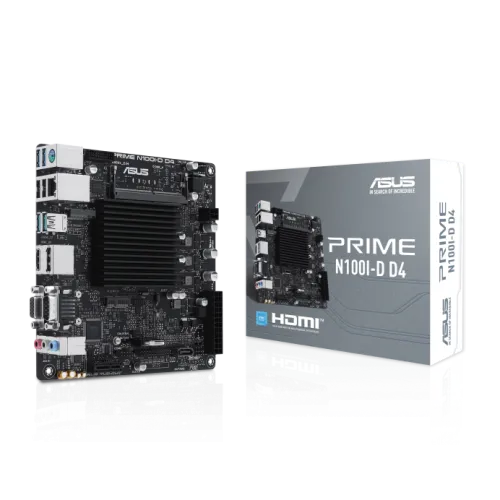

Overview of ASUS Prime N100I-D D4 Mini-ITX Motherboard
The ASUS Prime N100I-D D4 Mini-ITX motherboard is an exceptional choice for compact PC builds. Designed to offer a perfect blend of performance and efficiency, this motherboard supports the latest Intel processors, ensuring seamless multitasking and gaming experiences.
Key Features
This motherboard is equipped with four DDR4 slots, allowing for substantial RAM capacity. Additionally, the ASUS Prime N100I-D D4 boasts multiple connectivity options, including USB 3.2 and HDMI ports, making it versatile for modern applications.
Benefits of the Design
The Mini-ITX form factor of the ASUS Prime N100I-D D4 enables the creation of space-efficient PC systems without compromising on performance. It’s ideal for users seeking to build compact gaming rigs or powerful home office setups. Experience performance at your fingertips with this remarkable motherboard.
